HEP2.2 |
HE ER SU PPDU |
27.1.4 (PPDU formats) |
CFHE
and HEP6.4 and HEP3.1:M |
|
HEP2.2 |
HE ER SU PPDU |
27.1.4 (PPDU formats) |
CFHE: M |
Hi Edward,Thanks for preparing these resolutions. I have a quick question:- CID 24212- I am trying to understand the following additions in certain instances NOT HEM9. Could you please help clarify?
Regards,AlfredOn Wed, Jul 22, 2020 at 3:50 PM Edward Au <edward.ks.au@xxxxxxxxx> wrote:Dear Osama,Thank you. Revision 3 of 20/0665 is now available at https://mentor.ieee.org/802.11/dcn/20/11-20-0665-03-00ax-comment-resolution-on-mibs-and-pics.docxIn addition to the call on Thursday, please kindly reserve me some time on July 28 (Tuesday) as I may need to present revision to a few CIDs if needed.Regards,
EdwardOn Tue, Jul 21, 2020 at 4:38 PM Osama Aboul-Magd <oamagd@xxxxxxxxx> wrote:Thank you, Sir. I’ll add to the agenda.
Regards;
Osama.
From: Edward Au <edward.ks.au@xxxxxxxxx>
Date: Tuesday, July 21, 2020 at 4:33 PM
To: Osama Aboul-Magd <oamagd@xxxxxxxxx>
Cc: <STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx>
Subject: Re: [STDS-802-11-TGAX] TGax CRC 2020-07-21
Hello Osama,
Would you add 20/0665r3 into the agenda for the CRC call this Thursday? I will upload it by the end of tomorrow. On Thursday, I can call in between 10 to 11, and 12 to 1.
Thanks,
Edward
On Tue, Jul 21, 2020 at 9:49 AM Osama Aboul-Magd <oamagd@xxxxxxxxx> wrote:
Hi Mark,
agenda is available at: https://mentor.ieee.org/802.11/dcn/20/11-20-0538-48-00ax-tgax-crc-teleconference-march-july-2020-teleconference-agendas.pptx
You are correct that the CIDs in 11-20/1022 are scheduled for motion during the call today. As usual discussion will take place first.
Regards;
Osama.
On Tue, 21 Jul 2020 at 09:37, Mark Rison <m.rison@xxxxxxxxxxx> wrote:
I have the following comments on 20/1022r3, whose resolutions are I
think on the agenda for motion today (the agenda has not been formally
announced as far as I can tell).
- CID 24565: I think "Ack-enabled" should be "ack-enabled"
- CID 24403:
a) A free-for-all harms QoS and should be recommended against.
b) There are various editorial issues too, mentioned in the comment and
addressed in 19/1667r1, which should be fixed even if the group decides
that QoS is not worth worrying about, e.g.:
1) The para
An HE STA that intends to send QoS Data frames from a single TID should select a TID from the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame. If the HE STA has no buffered MPDU for TIDs belonging to the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then the HE STA may include MPDUs for a TID belonging to any other AC in that A-MPDU carried in the HE TB PPDU.
is confusing, because the first sentence is just a "should" (which is
fine) but the second sentence implies with its "may" that you can only
include lower-priority ACs if there are no buffered higher-priority
ACs, which I think is not the intent.

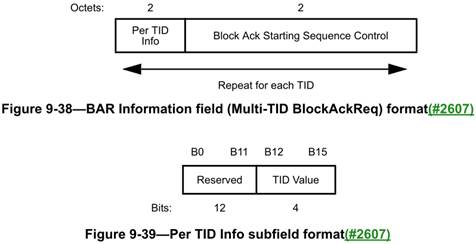

2) The Multi-TID BAR frame does not have "TID subfields in the AID TID Info fields in the Per TID Info subfields",
it has TID Value subfields in the Per TID Info subfields:
Here are the changes I propose (note it's all "should" so no-one is
going to jail):
In 26.6.3.1 change:
If the AP specifies a value defined in Table 9-154 (ACI-to-AC encoding)(#20006) in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then an HE STA that transmits a multi-TID A-MPDU to the AP should aggregate QoS Data frames from any one of the TIDs from the same AC or higher priority AC as indicated in the Preferred AC subfield of the Trigger Dependent User Info field that is addressed to the STA in the Trigger frame, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.
NOTE—While it is recommended that the STA transmit QoS Data from the AC that is same or higher than the preferred AC, the STA might still(#20227) to aggregate QoS Data from an AC that has lower priority than the preferred AC.
The STA may aggregate MPDUs from TIDs in other ACs within the remaining time to the HE TB PPDU duration value indicated in the UL Length subfield in the Common Info field of the received Trigger frame, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.
NOTE—If the AP indicates AC_BK in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then an HE STA that transmits a multi-TID A-MPDU to the AP might aggregate MPDUs from any AC/TID or combination of TIDs, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.
An HE STA that intends to send QoS Data frames from a single TID should select a TID from the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame. If the HE STA has no buffered MPDU for TIDs belonging to the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then the HE STA may include MPDUs for a TID belonging to any other AC in that A-MPDU carried in the HE TB PPDU.
to:
An HE STA that transmits a multi-TID A-MPDU in an HE TB PPDU should aggregate MPDUs in the following order:
· first, any and all MPDUs that correspond to the Preferred AC subfield of the Trigger Dependent User Info field addressed to the STA in the Trigger frame
· then, any and all MPDUs that correspond to any AC that has a higher priority
· then, any MPDUs that correspond to any AC that has a lower priority
subject to:
· the limit indicated in the TID Aggregation Limit subfield in the Trigger Dependent User Info field addressed to the STA in the Trigger frame
· the duration indicated in the UL Length subfield in the Common Info field of the Trigger frame
NOTE—These rules permit a STA to not aggregate any MPDUs from the preferred AC or a higher priority AC.
In 26.4.1 change:
An HE STA that transmits a Multi-TID BlockAckReq frame in a PPDU that is not an HE TB PPDU shall set the TID subfields in the AID TID Info fields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the primary AC. An HE STA that transmits a Multi-TID BlockAckReq frame in an HE TB PPDU may set the TID subfields in the AID TID Info fields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to a TID that corresponds to any AC.
to:
An HE STA that transmits a Multi-TID BlockAckReq frame in a PPDU that is not an HE TB PPDU shall set the TID Value subfields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the primary AC. An HE STA that transmits a Multi-TID BlockAckReq frame in an HE TB PPDU should set the TID Value subfields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the preferred AC.
Thanks,
Mark
--
Mark RISON, Standards Architect, WLAN English/Esperanto/Français
Samsung Cambridge Solution Centre Tel: +44 1223 434600
Innovation Park, Cambridge CB4 0DS Fax: +44 1223 434601
ROYAUME UNI WWW: http://www.samsung.com/uk
From: *** 802.11 TGax - HEW - High Efficiency WLAN *** <STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx> On Behalf Of Osama AboulMagd
Sent: Friday, 17 July 2020 15:15
To: STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGAX] TGax CRC 2020-07-21
Hello All,
TGax CRC has a conference call scheduled for Tuesday July 21 @ 17:00 ET; for 2 hours.
Please let me know if you have a submission. I’ll send an agenda later.
Webex info https://ieeesa.webex.com/ieeesa/j.php?MTID=m6d9bf23fe89cca58d8d96f07f57cd8e9
Meeting number: 129 915 3467
Meeting password: wireless (94735377 from phones and video systems)
Join by phone: Tap to call in from a mobile device (attendees only) +1-408-418-9388 USA Toll
Global call-in numbersAccess code: 129 915 3467
Teleconferences are bound by the conditions stipulated by the documentation below. Please review them and bring up any questions/concerns you may have before proceeding with the teleconference
• IEEE Code of Ethics
– https://www.ieee.org/about/corporate/governance/p7-8.html
• IEEE Standards Association (IEEE-SA) Affiliation FAQ
– https://standards.ieee.org/faqs/affiliation.html
• Antitrust and Competition Policy
– https://standards.ieee.org/content/dam/ieee-standards/standards/web/documents/other/antitrust.pdf
• IEEE-SA Patent Policy
– http://standards.ieee.org/develop/policies/bylaws/sect6-7.html
– https://standards.ieee.org/about/sasb/patcom/
• IEEE 802 Working Group Policies &Procedures (29 Jul 2016)
– http://www.ieee802.org/PNP/approved/IEEE_802_WG_PandP_v19.pdf
• IEEE 802 LMSC Chair's Guidelines (Approved 13 Jul 2018)
– https://mentor.ieee.org/802-ec/dcn/17/ec-17-0120-27-0PNP-ieee-802-lmsc-chairs-guidelines.pdf
• Participation in IEEE 802 Meetings
– https://mentor.ieee.org/802-ec/dcn/16/ec-16-0180-05-00EC-ieee-802-participation-slide.pptx
• IEEE 802.11 WG OM: (Approved 10 Nov 2017)
– https://mentor.ieee.org/802.11/dcn/14/11-14-0629-22-0000-802-11-operations-manual.docx
Regards;
Osama.
To unsubscribe from the STDS-802-11-TGAX list, click the following link: https://listserv.ieee.org/cgi-bin/wa?SUBED1=STDS-802-11-TGAX&A=1
--Alfred Asterjadhi, PhDIEEE802.11 TGbe Chair,Qualcomm Technologies Inc.Cell #: +1 858 263 9445Office #: +1 858 658 5302
