Greetings Beth

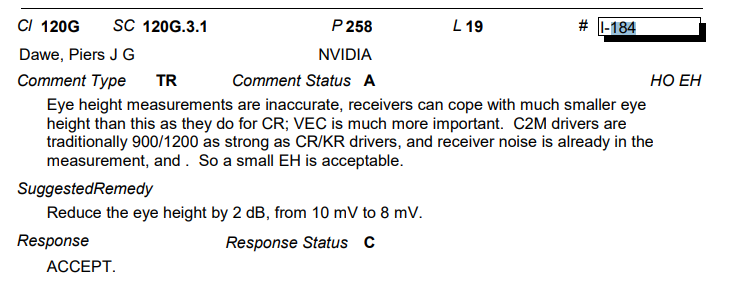

Our team has been trying reconcile comment 184 with some empirical data and we are throwing up a red flag, that this 2mV change breaks some established solutions that are being used for Rx testing today. If the team would accept a late
presentation, I’d like to discuss this tomorrow on the Ad-Hoc call.
Empirical data:
D3.0 results (Target EH : 10mV, Target VEC: 12..12.5 dB)
|
EH |
VEC |
|
|
Max |
11.5 |
13.3 |
|
Min |
9.35 |
11.5 |
|
Median |
10.7 |
12.2 |
|
Range |
2.15 |
1.8 |
|
Std Dev |
0.363509 |
0.299849 |
D3.1 results (Target EH : 8mV, Target VEC: 12..12.5 dB)
|
EH |
VEC |
|
|
Max |
9.65 |
13.4 |
|
Min |
8 |
11.7 |
|
Median |
8.7 |
12.7 |
|
Range |
1.65 |
1.7 |
|
Std Dev |
0.325095 |
0.326488 |
Regards,
John Calvin
Senior Strategic Planner
IP Wireline Solutions
Keysight Technologies
Email: john.calvin@xxxxxxxxxxxx
Office: 503 267 8105
From: Beth Kochuparambil (edonnay) <00000b6647231c5d-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Monday, March 21, 2022 7:19 AM
To: STDS-802-3-100GEL@xxxxxxxxxxxxxxxxx
Subject: [802.3_100GEL] 3/23 Ad Hoc - Call for Presentations
CAUTION: This message originates from an external
sender.
Hello All –
I’ve thus far had 1 request for presentation for Wednesday’s Ad Hoc. Is there anyone else planning/intending to present this week? Please note that the request and presentation are due today, 3/21 AoE.
Looking forward to talking with you,
~Beth
