Re: [10GBT] "EXTERNAL NOISE" Immunity



Hiroshi,

I have dug and dug on my computer for the original data and can't find it. I was an unfortunate victim of a computer virus a few years ago that ate all of my MS application data, but I still have the PDF file of my presentation. I believe the original data was captured in EXCEL and is thus lost to an e-vandal.

I am attaching the PDF.

Regards,

Dan
-----Original Message-----
From: stds-802-3-10gbt@IEEE.ORG [mailto:stds-802-3-10gbt@IEEE.ORG]On Behalf Of hiroshi takatori
Sent: Wednesday, July 21, 2004 3:00 PM
To: STDS-802-3-10GBT@listserv.ieee.org
Subject: [10GBT] "EXTERNAL NOISE" Immunity

Dan,

I understand the issue pointed out in your mail on EMI. It is one of our further study points for improvement.



Now, I would like to ask your “Dove test”.

As far as I understand, you are proposing to have “Dove test” for the PAM8 and 12 comparisons. This test may be used as a field test as well if it ends up with a simple test.

In anyway, the noise pulses are,

-          Randomly spaced transient impulses of a finite amplitude noise 1~20mV,

-          The noise spacing is randomly spaced but the average mean spacing is 14 ~ 20ms (50~70Hz),



And you mentioned that you could get a spectral content of those pulses. I think that is very helpful and key data for the comparison of PAM8 and 12 in terms of the “EXTERNAL NOISE” immunity.

Please, get that for us. Thanks.



Hiroshi Takatori

Keyeye Communications, Inc.




From: stds-802-3-10gbt@IEEE.ORG [mailto:stds-802-3-10gbt@IEEE.ORG] On Behalf Of Dove, Dan
Sent: Wednesday, July 21, 2004 10:01 AM
To: STDS-802-3-10GBT@listserv.ieee.org
Subject: Re: [10GBT] Request for Cat6 Emissions Characteristics



Hi Jose, All;



I agree that EMI characteristics of UTP "as a general rule" increase with frequency but I don't think its as easy as applying a simple 20log10(f) curve to the PSD. Depending on cable geometries, ground plane and component balance, the performance of a cable plant will most likely not have such a smooth function.

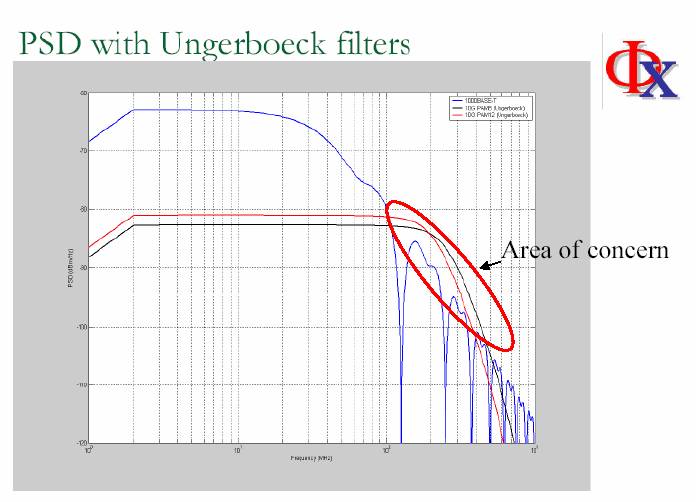

Therefore, its not quite so easy to say that PAM12 is better than PAM8 based strictly upon Jose's assertion. If you look at the figure below, you will see that PAM12 is higher in the range from 100MHz to 180MHz and both are above 1000BASE-T's spectrum in that region.



The FCC/CISPR don't really care if you pass their specs at 600MHz if you are failing at 180MHz.



Rather than drive a conclusion from this data, one expects the rational approach would be to determine this is an issue that requires attention/resolution prior to making *any* selection. Maybe the problem is not which PAM to use, but which cable to use? (FTP/STP?)



I will be investigating whether my employer will support some research into this area. I have access to a 10m chamber and think it would be a worthwhile investigation.



Thanks to Sailesh Rao and Vivek Telang for providing the data for this graph.



Regards,



Dan

ddnoise.pdf
