[802.3_4PPOE] Open Circuit Vdiff Test

[Ken <ken_bennett@xxxxxxxxx>]

Hi Yair, All,

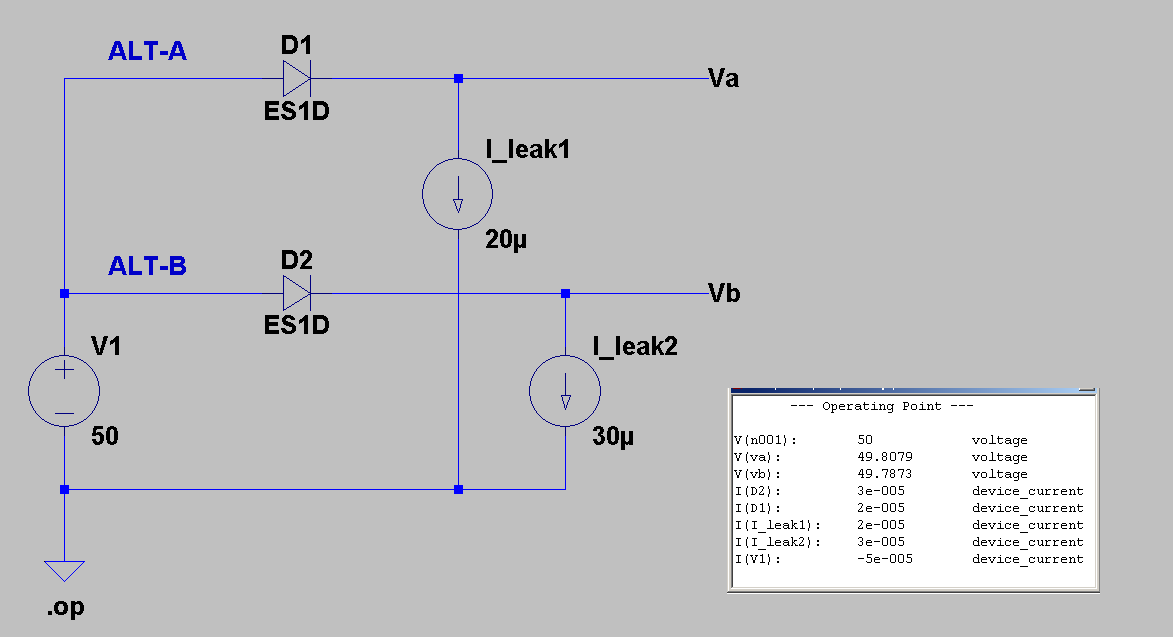

I've attached a simulation of a Vdiff open circuit measurement which
shows a 20mV Vdiff result for an internal current leakage difference of
10uA.  The implication is that a series forward-biased diode feeding the
PI can easily fail this conformance test unless it feeds both pairs of
the same polarity through a common node.

Avoiding any forward-biased diodes which feed a single pair in 4-pair
PSE designs may be the only practical means to consistently avoid this
test failure.  This would likewise result in better balance at high
currents.  However, some AC MPS and protection methods may be impacted
by this, so a note in an Annex and perhaps removal of AC MPS in 4-pair
designs might be warranted.

The above points probably do validate the omission of such PSE diodes
from 4pr unbalance models, which is helpful.

Best Regards,
Ken
