Re: [802.3_4PPOE] Rewrite of 33.2.8.5



Heath –

I emailed David A about the ‘Alternatively’ issue on item 1 above (hadn’t heard back).  I agree with you it is a problem.

Because IPeak-2P_unb_max is actually used in a requirement which references 33.2.8.5 – Table 33-18, item 22 (page 121), this is problematic.  Additionally, the term, “may be used.” Is difficult –  “may” gets translated to “is permitted to be” in IEEE standards language -  may be used for what? – it doesn’t say.



We could change Table 33-18 item 22 as well, and create a new value, AND change the language here, I suggest a different, smaller change, that I think preserves the improved clarity that David was trying to bring, AND avoids the problem:



I would delete “Alternatively” and replace “may be used” by “is used in Table 33-18 to limit the unbalance current in Type 3 and 4 PSEs.”



So that it says:

"An over-margined value of IPeak-2P-unb, IPeak-2P-unb_max which is defined by Equation (33–14) is used in Table 33-18 to limit the unbalance current in Type 3 and 4 PSEs."





2) I also agree that the lower bound template should be independent of the channel.  I don’t have a good fix for that right now.

-george



From: Heath Stewart [mailto:00000855853231d4-dmarc-request@xxxxxxxx]
Sent: Thursday, January 05, 2017 3:14 PM
To: STDS-802-3-4PPOE@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_4PPOE] Rewrite of 33.2.8.5



All,



We are noticing a few incongruities after looking at this longer.



1) Inadvertent change



"Alternatively, an over-margined value of IPeak-2P-unb, IPeak-2P-unb_max which is defined by Equation (33–14), may  be used."



is incorrect. It creates an alternate definition of IPeak-2P-unb.



It used to create a new variable, IPeak-2P-unb_max, which happens to have a relationship to IPeak-2P-unb. We need to preserve the original wording. This term is only used to form Iunb.



"The worst case value of IPeak-2P-unb is IPeak-2P-unb_max which is defined by Equation (33–14)."

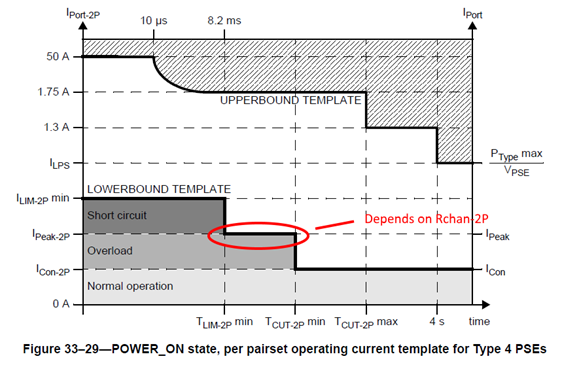

2) The lower-bound template as defined by IPeak-2P (by way of IPeak-2P_unb) now has a third dimension, Rchan-2P. This is not only strange but is at odds with the definition of Icon-2P_unb, which is a scalar.



Is this what we want?



Inline image 1



Cheers,



-Heath



On Wed, Jan 4, 2017 at 1:30 PM, Abramson, David <david.abramson@xxxxxx> wrote:

Hi everyone,



I just wanted to give everyone a chance to review my rewrite of 33.2.8.5.  I have attached a final version and a marked up version to this email.  I have tried to include everyone else’s comments on this section.



Regards,



David Abramson

IC Design

Power Interface

Texas Instruments

Office:  603.222.8519

Mobile:  603.410.7884
