[802.3_NGBASET] Editors memo on something to consider- the PCS/FEC architecture for 40GBASE-T



I had a good question from Tom Souvignier, and I’ve answered it in detail because it looks like it is useful for everybody.  It is the main editorial change in the draft and it dispatches an action item I found I had when I was looking up the answer to his question.



Back in May, we adopted the 40gig architecture from barrass_3bq_01_0713.pdf.  This changes where the PCS is, and, nominally would put the PHY’s encoding on a new sublayer.  The changes in the text for are fairly large.  They include deriving new primitives for the interface between the FEC and PMA sublayer in a BASE-T PHY, as well as the FEC and  PMA in a

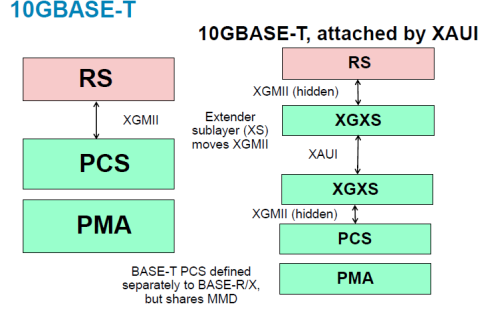

10GBASE-T (and earlier base-t’s) was architected as:

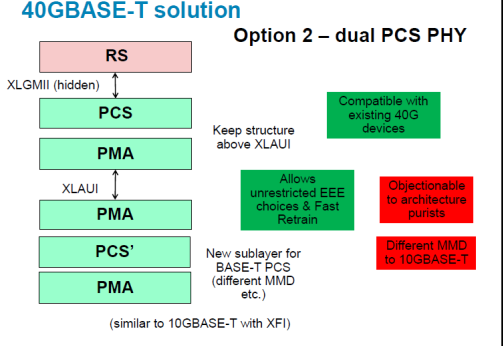

But, when the interface evolved to be an XFI, which wasn’t a specified extender sublayer, but actually its own PHY, this created a problem, which was solved by having 2 PCS’s (one for the XFI and one for the BASE-T) (I’ve shown the figure here with 40gig interfaces, but substitute XGMII for XLGMII and XAUI for XLAUI, and you’ll have 10GBASE-T).  This has the management impact that the 10GBASE-T PHY has two MMD’s in it – one for the XFI PMA and one for the BASE-T.  this architecture stack up, while ugly, works for both 10GBASE-T and 40GBASE-T.  It minimizes text changes in the document – looking like the 10GBASE-T text, and, would provide us flexibility to adapt to 25GBASE-T regardless of how the architecture stacks up.  I am therefore recommending that we switch back to architecture #2 in barrass_3bq_01_0713.pdf (see page 9).

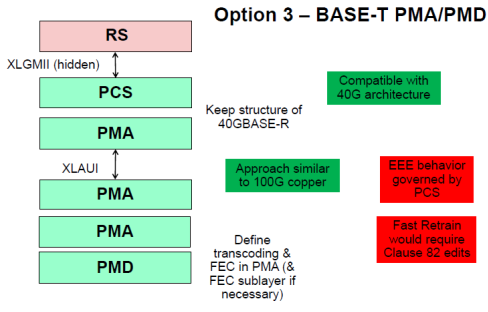

Hugh proposed we follow the architecture model of 802.3ba, and just have a BASE-T PCS (option 3 in his presentation), and we adopted this model, although the minutes note a participant concerned about the text impact, and hence my action item to diagram the changes – with Hugh’s untimely death, this item was forgotten – my apologies.

The changes involve a rewrite of the entire PCS section of the document to make it an FEC sublayer, inventing a non-laned FEC interface, and a new set of primitives for interfacing this hybrid FEC/coded modulation PCS sublayer to the PMA.  (the text would accomplish this by calling the transcoding/RSFEC/LDPC FEC/modulation encoder a ‘FEC sublayer’, not quite like the other FEC sublayers in 802.3, between the two PMA’s in the bottom part of the stack.)  It’s enough of a complete rewrite of those sections that  I’ve been tearing what hair I have out over some of the implications and how to write this.  If there are volunteers, I will be happy to have them to come forward at the meeting.





So, the decision will be whether to go back and do Option 2 (which really means layering things like Option 1 – the 10GBASE-T PHY).



The pros are that if we go back to the 10GBASE-T w/XFI – like architecture for 40GBASE-T:

1.       We have a solution that can easily be adapted to whatever architecture our multi-rate world throws at us – including the following two, in my view likely, alternatives: combo-speed PHYs (10G/40G), or a 25G architecture that looks more like 10GBASE-R than 40G.

2.       As Hugh pointed out, it also gives us the flexibility to do all kinds of things with EEE.  My summary opinion is that the “pure” architecture is also, like most purebreds, less adaptable to a changing environment.

3.       All 10GBASE-T PHY and System vendors are already familiar with this architecture and should be able to readily implement it.

AND,

4.       You’ll make your editor happy after a couple of months of a hurting head, he can go back to mostly the 10GBASE-T text on the PCS and not have to get you all to help him rewrite the primitives and layering of the PHY in a way that is different from everything else in 802.3.  This will also smooth our way to a stable draft



The con is that we get an uglier architecture, perhaps offensive to purists, with an extra MMD in the package (which most systems vendors are already used to for 10GBASE-T), and different from other 40G devices.



Please think about this and we’ll discuss at the meeting.



George Zimmerman

Principal, CME Consulting

Experts in Advanced PHYsical Communications Technology

george@xxxxxxxxxxxxxxxxxxxxxxxxxxxxx

310-920-3860



(PLEASE NOTE NEW EMAIL ADDRESS.  THE OTHER WILL STILL WORK, BUT PLEASE USE THIS FOR CME BUSINESS)
