Re: [802.3_EPOC] Latest objectives proposal



In that case, “Specify at most two PHYs … “ should be simpler to parse … I guess nobody will specify 0 PHYs …



From: Hal Roberts [mailto:Hal.Roberts@xxxxxxxxx]
Sent: 08 May 2012 22:29
To: Marek Hajduczenia; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Marek,



I agree there is no worry about more than two PHYs. So here is a modified proposal.



Specify at least one PHY and two PHYs if necessary to support subscriber access networks using the EPON protocol and operating on point--‐to--‐multipoint RF distribution plants comprised of all--‐coaxial cable or hybrid fiber/coaxial media.



If others think the current wording will not be confusing when going to IEEE for SG approval then I am not adamant about it.  I know the EPoC group has this understanding, it is outside readers who may find the current text indicating a preference for more than one PHY.



Hal

From: Marek Hajduczenia [mailto:marek.hajduczenia@xxxxxxxxx]
Sent: Tuesday, May 08, 2012 4:20 PM
To: Hal Roberts; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Never before was there a problem with such an “understanding”. I would not be averse to the change you propose, but see it as unnecessary nonetheless. We have spoken until now about two cable plant types (at most) so it would be a clear indication for two PHYs (at most)



From: Hal Roberts [mailto:Hal.Roberts@xxxxxxxxx]
Sent: 08 May 2012 22:10
To: Marek Hajduczenia; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



If you think “at least one PHY” must remain, then we should have more than an ‘understanding’ that the industry is driving towards a single PHY solution. The way it reads now, one might think that if we define one PHY we meet our objectives and if we define multiple PHYs we exceed our objectives.



The following wording does not preclude two PHYs but doesn’t require the reader to have ‘an understanding’ that the industry is driving to a single PHY solution.



Specify at least one PHY and at most two PHYs if necessary to support subscriber access networks using the EPON protocol and operating on point--‐to--‐multipoint RF distribution plants comprised of all--‐coaxial cable or hybrid fiber/coaxial media, with a goal to limit



From: Marek Hajduczenia [mailto:marek.hajduczenia@xxxxxxxxx]
Sent: Tuesday, May 08, 2012 3:50 PM
To: Hal Roberts; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Neither are my preferred choices of words – I would certainly like to have them nailed down further.



However, given the discussion we had at the last meeting, I think leaving the option of doing two PHYs is OK as long as we understand that the industry is driving towards a single PHY solution. Put it in other words. If we write down “one PHY” and a year from now we figure out we need two, we need at least to modify objectives, which is not as easy as it seems. If we write down “at least one PHY” right now and one year from now we figure out we can do everything with a single PHY, we are good to go.



From the safety perspective, I think it is prudent to leave it as it is and work diligently to make sure no more than one PHY is needed.



Marek



From: Hal Roberts [mailto:Hal.Roberts@xxxxxxxxx]
Sent: 08 May 2012 21:36
To: Marek Hajduczenia; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Marek,



Define “minimal augmentation to MPCP” for me please.



There are plenty of undefined terms in the document, I don’t see why the term “flexibility” has a higher burden than other terms.



We will define flexibility more precisely when we know what the channel models are. If you are still confused what flexibility means it means variable “QAM constellation density, FEC, guard interval and frame structure”.



We should eliminate the opening for multiple PHYs until someone can show that we can’t do what other standards 802.16e, LTE have done with more difficult channel model variations.



Hal



From: Marek Hajduczenia [mailto:marek.hajduczenia@xxxxxxxxx]
Sent: Tuesday, May 08, 2012 3:25 PM
To: Hal Roberts; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Hal,



Define “enough flexibility” for me, please.



Marek



From: Hal Roberts [mailto:Hal.Roberts@xxxxxxxxx]
Sent: 08 May 2012 21:21
To: STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_EPOC] Latest objectives proposal



Charaf,



Yes, I have heard the same and would submit the same reasoning I sent out before, “If a single PHY can operate over the wildly varying conditions found in wireless transmission (i.e. LTE or Wi-Fi with huge swings in signal strength, interference, multipath etc) surely a single PHY should suffice within the more controlled cable environment”.



Obviously the PHY parameters would have to be adjustable, i.e. QAM constellation density, FEC, guard interval and others. This is what is done in LTE and Wi-Fi.



What shouldn’t need to change is subcarrier spacing, symbol duration and other more difficult to change parameters.



As I sent out before, “The burden of proof should be on demonstrating the need for two PHYs.”



Having said all of that, it is much more likely that two PHYs might be considered to work well with TDD vs FDD.



With FDD the downstream would be a continuous signal (with idle patterns when no data is sent) just like DOCSIS which allows easy synchronization to the downlink and eliminates the need for preambles at the beginning of a burst (i.e. there are no bursts in the downstream).  Whereas with TDD we have to define downstream frames and upstream frames along with guard times.

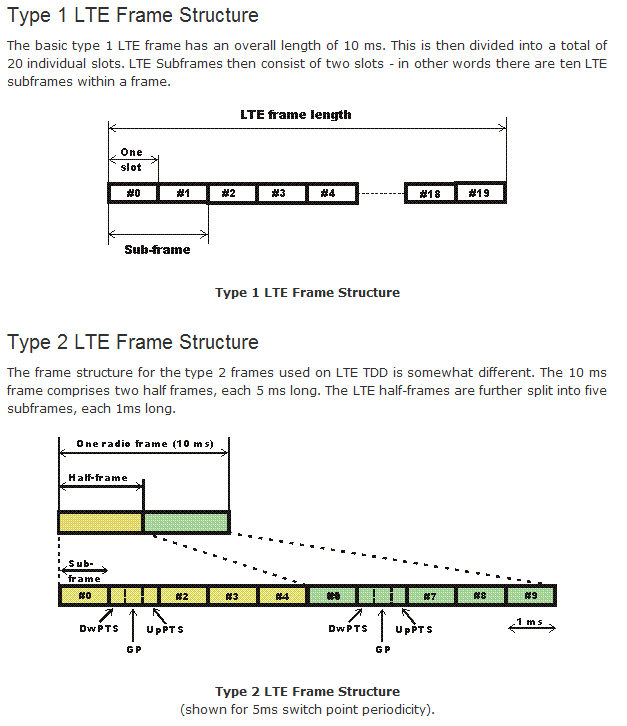

LTE solves this with two types of frame structures, Type 1 for FDD and Type 2 for TDD (see below).



As long as we consider two frame structures as defined under one single PHY then we still need only one PHY.



“The burden of proof should be on demonstrating the need for two PHYs.”



Therefore I would suggest a variation on Gomez’ suggestion:



"Specify one PHY to support subscriber access networks using the EPON protocol and operating on point-­to-­multipoint RF distribution plants comprised of all-­coaxial cable or hybrid fiber/coaxial media, with enough flexibility to operate both below and above 1GHz and in TDD or FDD duplexing modes."



Thanks,

Hal







From: Charaf HANNA [mailto:charaf.hanna@xxxxxx]
Sent: Tuesday, May 08, 2012 2:37 PM
To: Hal Roberts; STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_EPOC] Latest objectives proposal



Gentlemen,



From the 5 Criteria discussion, it seems to me the reference to more than 1 PHY has to do with passive versus active coax plants rather than below versus above 1 GHz.



Charaf



From: Hal Roberts [mailto:Hal.Roberts@xxxxxxxxx]
Sent: Tuesday, May 08, 2012 2:03 PM
To: STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_EPOC] Latest objectives proposal



Kevin,



If a single PHY can operate over the wildly varying conditions found in wireless transmission (i.e. LTE or Wi-Fi with huge swings in signal strength, interference, multipath etc) surely a single PHY should suffice within the more controlled cable environment.



Hal



From: Noll, Kevin [mailto:kevin.noll@xxxxxxxxxxx]
Sent: Tuesday, May 08, 2012 1:53 PM
To: STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_EPOC] Latest objectives proposal



There is some concern that operating in the lower bands is significantly different than operating above 1GHz, thus   the PHY might need to be different. The reason for "at least one" is not to have equal and competing specifications, but to allow for two implementations that address multiple sets of coaxial conditions.



If the same goal can be attained by a single configurable PHY, then we would probably be okay with that.



--kan--





From: "Gomez Chano (LQNA MED)" <Chano.Gomez@xxxxxxxxxx>
To: Kevin Noll <kevin.noll@xxxxxxxxxxx>
Cc: "<STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx>" <STDS-802-3-EPOC@xxxxxxxxxxxxxxxxx>
Subject: Re: [802.3_EPOC] Latest objectives proposal



Hi,



I did not attend the last conference calls, but I have been following progress through the reflector. I have a question about the wording in Objective 1, which is now



"Specify at least one PHY to support subscriber access […]"



while previous proposal was:



"Specify a PHY to support subscriber access networks […] "



Can somebody clarify the rationale for the new wording, which seems to "almost" encourage the group to develop more than one PHY? We have all seen other IEEE groups that quickly yielded to the temptation of adopting multiple PHYs as soon as they realized that having the group agree on a single PHY was hard work. I would hate to see the same thing happening in EPoC, as this would cause market fragmentation and slow down adoption.



The objective should be "one PHY". Only if the group finds at a later stage a very good reason to develop more than one PHY then that option should be considered.



Just to be clear, for me it would be OK if the PHY for downstream and upstream channels have different parameters. As long as vendors do not have to face the decision of choosing between multiple and equally valid PHY options when implementing their products, that would still qualify as "one PHY" for me.



Best Regards



Chano Gómez

Lantiq North America



On May 8, 2012, at 9:38 AM, Noll, Kevin wrote:



<epoc_objectives_for_may_2012.pdf>
