Re: [STDS-802-11-TGBE] TGbe Teleconference [08/29/2019]: Reminder

Hi Liuming,


Thank you for the presentation (11-19/0951r0).


I have a couple of questions:

  1. On slide #6, could you please elaborate on how you differentiate between RTA and non-RTA traffic? As you may know traffic class information is usually lost when a packet traverses thru a legacy routers along the way.
  2. On slide #7, the CAP period are set aside to aid RTA transmissions. However, your slide mentions that non-RTA traffic is allowed during these times along with non-CAP periods. Seems like non-RTA traffic will benefit in your scheme. Shouldn’t you disallow non-real-time traffic during CAP periods? Also how do you prevent OBSS STAs from occupying the medium during CAP periods?






From: Sharan Naribole <n.sharan@xxxxxxxxxxx>
Sent: Thursday, August 29, 2019 8:14 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] TGbe Teleconference [08/29/2019]: Reminder


CAUTION: This email originated from outside of the organization.

Hi Liuming,


Thanks for the 11019/951 presentation! I have the following clarification question:


The proposal focuses on real-time applications with high throughput and “worst case latency” requirements. Based on Slide 7, non-RTA traffic has channel access opportunities in CSMA TXOPs and CAPs. And, RTA traffic use scheduled access in CAPs.  It is a bit unclear to me how the proposed solution is improving the worst case latency performance.





From: Liyunbo [mailto:liyunbo@xxxxxxxxxx]
Sent: Thursday, August 29, 2019 7:19 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE]
: [STDS-802-11-TGBE] TGbe Teleconference [08/29/2019]: Reminder


Hi Liuming,

                Thanks for your presentation(0951r0–Discussion on Multi-band/channel Access), It is interesting to use multi-links to help RTA application. However, I have two questions for your design, would you please to clarify?

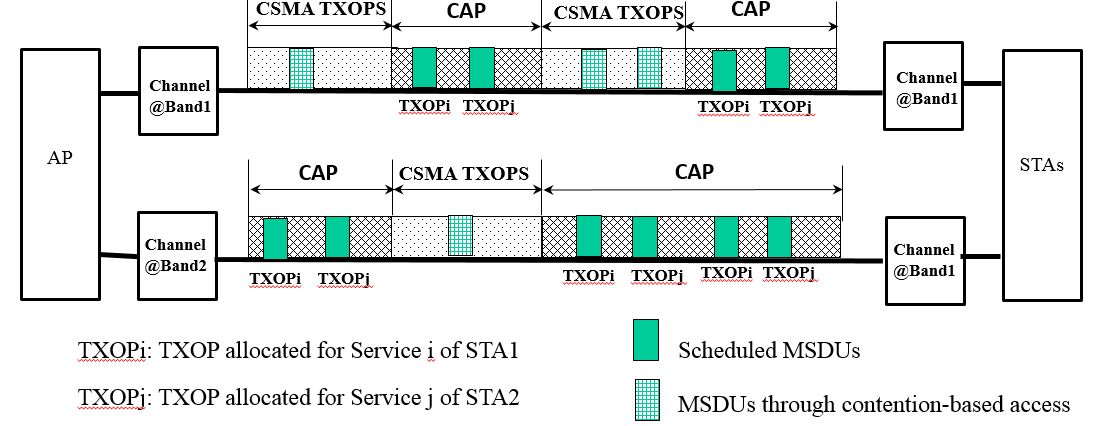

  1. In the below figure, when this AP setup CAP in band 1, the OBSS will not able to setup RTA application anymore, because the duration of CAP may larger than the latency requirement of RTA. Am I understand correctly?
  2. When there are legacy OBSS in band 1, how AP can setup CAP?









发件人: Alfred Asterjadhi [mailto:asterjadhi@xxxxxxxxx]
发送时间: 2019829 4:14
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: [STDS-802-11-TGBE] TGbe Teleconference [08/29/2019]: Reminder


Hello all,


This is a reminder that we have the fifth conference call of the series scheduled for tomorrow Thursday (August 29th) between 19:30 - 22:00 ET.


The teleconferences agenda is posted below:


Below is a list of the contributions that are expected to be presented (in green) and contributions that are in the back up queue (in yellow), i.e., that may be discussed if there is time.

If your name appears in the list please make sure to attend the meeting and that your contribution is uploaded to the IEEE mentor server. If you cannot attend the conf call please send a notification prior to the conference call.

In addition, please note that for each contribution i have noted the number of SPs I found (or was notified) for each document.

If you do plan to run a SP please send a notification asap so that we can plan accordingly (need to setup an e-poll etc, details to follow in a separate e-mail if necessary).

·  1085r0–High Level EHT Preamble Structure            (Rui Cao)

·  0951r0–Discussion on Multi-band/channel Access Method  (Liuming Lu)

·  1081r0–Multi-Link Aggregation - Gain Analysis (Latency) (Abhishek Patil)

·  1095r0–Multi-link requirement discussion (Yonggang Fang)

·  1100r1–Per Packet Multiple Link Selection (Alan Jauh)

·  1101r1–Conditional Packet Dup. in Multiple Link System (Alan Jauh)

·  1116r0–Channel access in multi-band operation (Yunbo Li)

·  1128r0–Multi-link transmission (Rojan Chitrakar)

·  1144r0–Channel Access for Multi-link Operation (Insun Jang)

·  1159r0–Multilink operation capability announcement (Liwen Chu)


Teleconferences are bound by the conditions stipulated by the documentation below. Please review them and bring up any questions/concerns you may have before proceeding with the teleconference


IEEE Patent Policy -

Patent FAQ -
LoA Form -
Affiliation FAQ -
Anti-Trust FAQ -
Ethics -
IEEE 802.11 Working Group Operations’ Manual –



To join the meeting:

Conference ID: 808-571-868


Best Regards,
