I had 6 motions in 1907r2:
Motion #1:
• Move to add the following into 11be SFD:
– Small-size RUs can only be combine with small-size RUs and large-size RUs can only be combine with large-size Rus.
• RUs with equal to or more than 242 tones are defined as large-size RUs
• RUs with less than 242 tones are defined as small-size RUs
Motion #2:
• Move to add the following into 11be SFD:
– Combination of small-size RUs shall not cross 20MHz channel boundary.
Motion #3:
• Move to add the followings into 11be SFD:
– Only allowed small-RU combinations are RU126+RU26 and RU52+RU26.
Motion #4:
• Move to add the followings into 11be SFD:
– For 20 and 40 MHz PPDU, within 20MHz boundary, any contiguous RU26 and RU106 can be combined.
Motion #5:
• Move to add the followings into 11be SFD:

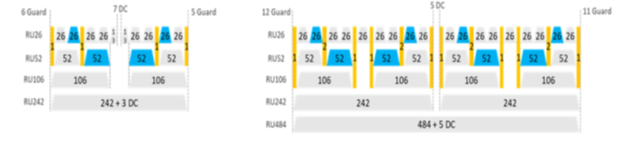

• For 20 and 40 MHz PPDU, the blue colored combination of RU52 and RU26 are allowed.
Motion #6:
• Move to add the followings into 11be SFD:

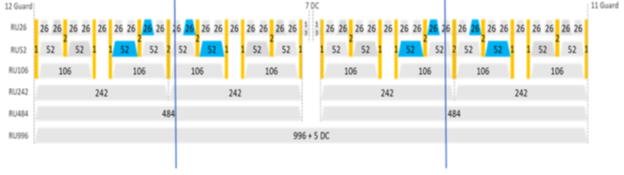

– For 80MHz PPDU, the blue colored combination of RU52 and RU26 are allowed.
