Hi Dandan,
Please note that 80MHz PR is [1 -1 -1 -1] and 160MHz PR is [1 -1 -1 -1 1 -1 -1 -1] which is constructed by duplicating 80MHz one. So, I think non-contiguous and contiguous cases are unified. From this point of view we came up with unified phase rotation sequences in larger bandwidth. Also, unified one may be beneficial to implementation.
Best regards,
Eunsung
From: Liangdandan (2012) [mailto:dandan.liang@xxxxxxxxxx]
Sent: Thursday, June 4, 2020 11:44 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] [PHY] Phase Rotation, 11-20/0699r1
Hello Eunsung，
Many thanks for your contribution about document ID 11-20/0699r1.
I think it is better to run the SPs after a comprehensive discussion.

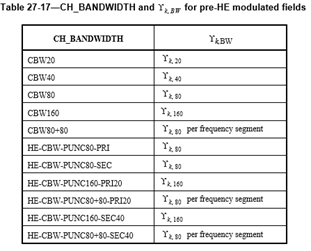

In 11ax, the phase rotation values for pre-HE modulated fields for various CH_BANDWIDTH can be seen from the Table 27-27:
For my understanding, contiguous 160MHz uses 160MHz phase rotation values, while for noncontiguous 160MHz (80+80) each defined 80MHz phase rotation values is applied to each 80MHz.lease correct me if my understanding is not correct.
So for 240/160+80/320/160+160 transmission, it is better to follow the 11ax rule. More specifically, for non-contiguous mode: reusing 160MHz PR values for each 160MHz for 160+160 transmission, and reusing 160MHz and 80MHz PR values for each 160MHz and 80MHz for 160+80MHz transmission. For contiguous 240MHz and 320MHz transmission, the newly defined PR values are needed.
Looking forward to hearing from you.
BR,
Dandan
发件人: Eunsung Park [mailto:esung.park@xxxxxxx]
发送时间: 2020年6月4日 8:20
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] TGbe Conf Calls [May-July 2020]: Call For Submissions
Hi Alfred,
Please add the following deferred SPs to the PHY agenda.
- 1 SP, 11/0699r1, Phase Rotation Proposal Follow-up, Eunsung Park (LG Electronics)
- 2 SPs, 11/0782r2 EHT-STF Sequences, Eunsung Park (LG Electronics)
Best regards,
Eunsung
From: Eunsung Park [mailto:esung.park@xxxxxxx]
Sent: Friday, May 29, 2020 10:30 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] TGbe Conf Calls [May-July 2020]: Call For Submissions
Hi Alfred,
I have deferred straw polls in the following document. Please add it to the PHY agenda.
- 3 SPs, 11/0782r1 EHT-STF Sequences, Eunsung Park (LG Electronics)
Best regards,
Eunsung
From: Eunsung Park [mailto:esung.park@xxxxxxx]
Sent: Tuesday, May 19, 2020 4:35 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] TGbe Conf Calls [May-July 2020]: Call For Submissions
Hello Alfred,
Please add the following contributions to the PHY agenda
- 11/0699r1 Phase Rotation Proposal Follow-up, Eunsung Park (LG Electronics)
- 11/0782r0 EHT-STF Sequences, Eunsung Park (LG Electronics)
Regarding 0699r1, I already presented it but it has some updates and deferred SPs.
Best regards,
Eunsung
From: Alfred Asterjadhi [mailto:asterjadhi@xxxxxxxxx]
Sent: Monday, May 11, 2020 3:14 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] TGbe Conf Calls [May-July 2020]: Call For Submissions
Hello all,
This is a call for submissions for the upcoming teleconference calls meeting.
Please let me know if you have any items to be added to the agenda by sending me an e-mail with a request using the format below:
- DCN-Presentation Title (Author, Affiliation), Topic
Also please ensure that the presentation is uploaded at least one week prior to the conference call as I will include the links to the presentations in the Submission's list. If the contribution is not uploaded by that time then it may not be included in the list.
PS - There is no need to send an additional request for contributions that are already present in the conf call queue as they will be imported by default to the Back-Logged Submission's List.
Best Regards,
Alfred
--
Alfred Asterjadhi, PhD
IEEE802.11 TGbe Chair,
Qualcomm Technologies Inc.
Cell #: +1 858 263 9445
Office #: +1 858 658 5302
