Hi Shubho,
Thank you for the question. However I think your question is not specific to group addressed frames but is rather applicable to reception of any frame on an EMLSR link. Kindly note that the baseline spec has the following bullet:
“The non-AP MLD shall be switched back to the listening operation on the EMLSR links after the time indicated in the EMLSR Transition Delay subfield of the EML Capabilities
subfield in the Common Info field of the Basic Multi-Link element if any of the following conditions is met and this is defined as the end of the frame exchanges:”
The same behavior is also applicable for reception of group-addressed frames. Therefore the proposed changes include the EMLSR transition delay after the end of the group-addressed frame transmission time. I hope that answers the question?
Regards,
Vishnu
From: Shubhodeep Adhikari <shubhodeep.adhikari@xxxxxxxxxxxx>
Sent: Tuesday, September 6, 2022 7:59 AM
To: Vishnu Vardhan Ratnam <vishnu.r@xxxxxxxxxxx>; STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Latest comment spreadsheet on LB266 (11be D2.0) posted
Hi Vishnu,
Thanks for the clarifications.
So, the current proposal covers mechanisms to enable a non-AP in EMLSR mode to receive any group addressed frames, including only beacons.
But then, a non-AP in EMLSR mode can already do CCA as well as receive MU-RTS/BSRP in non-HT (or non-HT dup) format on all EMLSR links. In that case, if it receives a beacon
in non-HT format, why does it need a transition delay after receiving a beacon on one link to being in listen mode on all EMLSR links?
Regards,
Shubho
On Thu, 1 Sept 2022 at 21:13, Vishnu Ratnam <vishnu.r@xxxxxxxxxxx> wrote:
Hi Gaurang,
I am fine with the suggested changes except for the following: “An AP affiliated with the AP MLD that intends to exchange individually addressed frames with the non-AP MLD on one of the EMLSR links shall begin the frame exchanges by …”. I am not sure if “intends to exchange” would be accurate. Note that the later text reads: “shall begin the frame exchanges by ..”, i.e., the frame exchange is being initiated (whether it will be successful or not is different question). So I think it is more appropriate to just say: “An AP affiliated with the AP MLD initiates individually addressed frame exchanges the non-AP MLD on one of the EMLSR links shall begin the frame exchanges by …”. The discussion on the call was slightly different and was related to including the term “individually addressed” if I am not wrong.
Hi Shubhodeep,
I am fine with the suggested change: “on all the EMLSR links on which listening operation was interrupted due to the reception of group addressed frames”
I also plan to add the changes suggested by Gaurang, as indicated in his email with Ben.
Regarding the third point,
- As per my understanding and discussion with others, beacon frames are also included in the list of group addressed frames. This is why we do not specifically mention beacons here. The scheme is designed to provide switching delay before all beacons, not just DTIM beacons. [I will have to do some digging if you want me to find the relevant spec text].
- For buffered group-addressed frames that are delivered after DTIM beacon, the “switching delay protection” is provided before the start of the DTIM beacon.
- Regarding the last point of whether we need to define a new type of EMLSR delay that unfortunately is beyond the scope of this CR document, and it is not clear to me why such a delay would be different from the delay to transition from receiving/transmitting operation on one link to listening operation on all links. Do you recommend providing a protection period of “EMLSR padding delay + EMLSR transition delay”? Or defining a new delay all together?
Regards,
Vishnu
From: Shubhodeep Adhikari <00000c144a46bcee-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Thursday, September 1, 2022 9:13 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Latest comment spreadsheet on LB266 (11be D2.0) posted
Hi Vishnu,
Thanks for preparing the contribution. Please see comments below.
CID 13587: As noted, the EMLSR architecture does not preclude a non-AP from listening on the other EMLSR links while it is receiving group addressed frames on one of the EMLSR links. So, the following can be added:

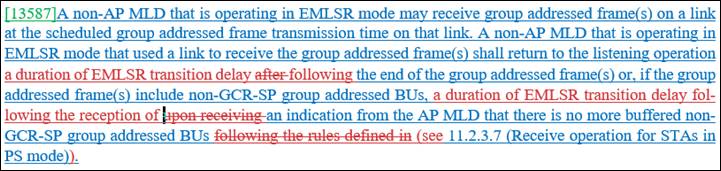

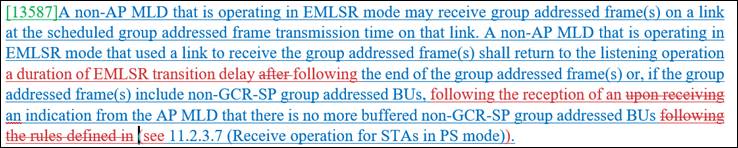

- [13587]A non-AP MLD that is operating in EMLSR mode may receive group addressed frame(s) on a link at the scheduled group addressed frame transmission time on that link. A non-AP MLD that is operating in EMLSR mode that used a link to receive the group addressed frame(s) shall return to the listening operation on all the EMLSR links on which listening operation was interrupted due to the reception of group addressed frames after the end of the group addressed frame(s) or, if the group addressed frame(s) include non-GCR-SP group addressed BUs, upon receiving an indication from the AP MLD that there is no more buffered non-GCR-SP group addressed BUs following the rules defined in 11.2.3.7 (Receive operation for STAs in PS mode).
