[STDS-802-11-TGBE] RDG/More PPDU subfield (CID 11827)



Hi, Yunbo and Abdel,

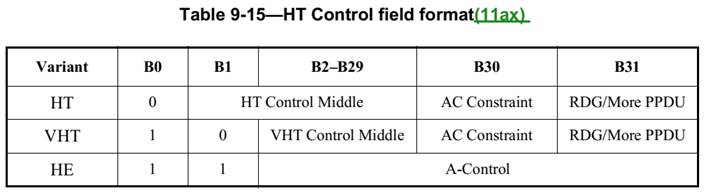

RDG/More PPDU subfield is in HT control for HT/VHT variant, and in CAS control among A-Control for HE variant as below.

The target STA in a MU-RTS TXS Trigger frame, that is newly defined, is an EHT STA. So RDG/More PPDU subfield for the target STA in a MU-RTS TXS Trigger frame is present in the CAS Control subfield as below resolution.

CID

Commenter

PP.LL

Comment

Proposed Change

Resolution

11827

9.2.4.6.1

122.04

This new interpretation is only valid when the RDG/More PPDU bit is included in the CAS Control. Add a note to the table specifying that the Target STA case is present when bit is in CAS control as defined in x.y.

As in comment.

Revised



Agree with the commenter and just add note below.

For your information, other explain about the subfield is described in REVme as below: ‘In a non-HE HT STA, the RDG/More PPDU subfield and the AC Constraint subfield are present in the HTC field. In an HE STA, the RDG/More PPDU subfield and the AC Constraint subfield are present in the CAS Control subfield.’



To TGbe Editor:

Please add the note below the Table 9-17.

‘NOTE: RDG/More PPDU subfield for the target STA in a MU-RTS TXS Trigger frame is present in the CAS Control subfield (See 9.2.4.6a.7 (CAS Control)).

If you have other opinion, please let me know.

Best regards,

Jinyoung
