Re: [STDS-802-11-TGBN] Planned Motions



Hi Alfred,



  The supporting DCN# is 25/0079r1 for all the motions sent by Jianhan in previous email.



Thanks,

Shengquan



From: Jianhan Liu <00001c2ebe33e92d-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Wednesday, July 30, 2025 5:49 AM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBN] Planned Motions



External email : Please do not click links or open attachments until you have verified the sender or the content.

Hi Alfred,

Please add the following motions which are based on SPs in yesterday’s AM1 PHY session:

  1. Move to include the following into 11bn SFD

IM pilots are only applied for non-punctured/full bandwidth SU transmission.

              (Result: no objection),  Mover: Shengquan Hu



  1. Move to include the following into 11bn SFD

when IM is applied, the value of D_TM for LDPC tone mapper is as below:

  • 9 for 242-tone RU for non-DCM
  • 9 for 484-tone RU for non-DCM
  • 10 for 996-tone RU for non-DCM (same value is used for each 80MHz frequency subblock when PPDU bandwidth is 160MHz and 320MHz)

(Result: no objection),  Mover: Shengquan Hu



  1. Move to include the following into 11bn SFD:

IM pilots have values of 0’s (i.e. Zero-Energy)

(Result: no objection),  Mover: Shengquan Hu





  1. Move to add the following into 11bn SFD:

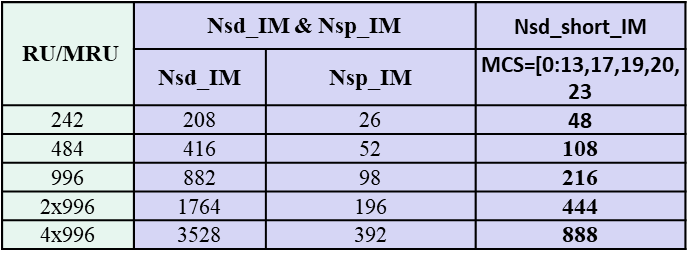

Nsd_short values when IM pilots are applied are as shown in the Table below



(Result: no objection),  Mover: Shengquan Hu



  1. Move to add the following into 11bn SFD:

The number of spatial streams is defined as below if IM is used:

      • For DL: limited to one spatial stream

(Result: no objection),  Mover: Shengquan Hu



  1. Move to add the following into 11bn SFD:

IM is not applicable when MCS 15 is used.

(Result: no objection),  Mover: Shengquan Hu

The supporting material for all three is DCN 25/0079r1.

Thanks,

Jianhan



---------- Forwarded message ---------
From: Shimi Shilo (TRC) <000018c72fccabed-dmarc-request@xxxxxxxxxxxxxxxxx>
Date: Wed, Jul 30, 2025 at 12:30 AM
Subject: Re: [STDS-802-11-TGBN] Planned Motions
To: <STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx>



Hi Alfred,



Please add the following motions which are based on SPs that passed in yesterday’s AM1 PHY session:



  1. Move to include the following in TGbn SFD:
    When IM is used, the LDPC tone mapper operates on both data and IM pilot tones.
    (result: 72Y/7N/15A)
  2. Move to include the following in TGbn SFD:
    The IM pilots are located contiguously at the input to the LDPC tone mapper, before the data QAMs.
    (result: no objection)

3.      Move to include the following in TGbn SFD:
The number of IM pilots is

  • 26 for a 242-tone RU
  • 52 for a 484-tone RU
  • 98 for a 996-tone RU
  • 2x98 for a 2x996-tone RU
  • 4x98 for a 4x996-tone RU

(result: no objection)



The supporting material for all three is DCN 25/1329r1.



Thanks,



Shimi



From: Ron Porat <000009a0da80e877-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Monday, July 28, 2025 9:31 AM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBN] Planned Motions



Hi Alfred,



Can you please either add or remove the content in Motion 473 PHY SFD with the following PDT material in 25/1315:



TGbn editor: Please add in 11bn D0.3 section 38.3.15.11.1 page 290 line 22:

In an OFDMA UHR MU PPDU using MU-MIMO in at least one RU or MRU, the total number of UHR-LTF symbols shall be chosen from the set {2, 4, 8}.



Agreed with no objection in the PHY ad-hoc today.



Thanks,

Ron









On Sun, Jul 27, 2025 at 10:44 AM Alfred Asterjadhi <asterjadhi@xxxxxxxxx> wrote:

Hello all,


I uploaded the latest motions deck which includes everything up to and including MAC/PHY ad-hoc. Please review and let me know if i missed anything:





These are scheduled for tomorrow's PM2 Joint.



Regards,


AA



--

Alfred Asterjadhi, PhD

IEEE802.11 TGbe/TGbn Chair,

Qualcomm Technologies Inc.

Cell #:    +1 858 263 9445

Office #: +1 858 658 5302
