Re: [STDS-802-11-TGM] Proposed resolutions for 40 ED1 comments posted



--- This message came from the IEEE 802.11 Task Group M Technical Reflector ---

Hi Mark,



                Thanks for the feedback.



                Response below.



Best,

Po-Kai



From: Mark Rison <m.rison@xxxxxxxxxxx>
Sent: Sunday, October 5, 2025 1:12 AM
To: Huang, Po-kai <po-kai.huang@xxxxxxxxx>; STDS-802-11-TGM@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGM] Proposed resolutions for 40 ED1 comments posted



Thanks, Po-Kai.  Here are the resolutions on which I have comments:



CID

Commenter

Page

Clause

Comment

Proposed Change

Resolution

mgr comment

Response to the comment.

2

Rojan Chitrakar

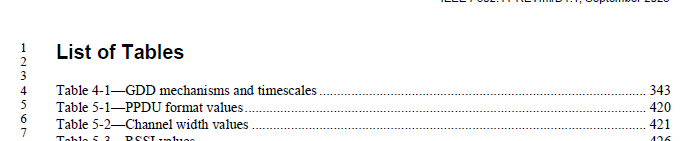

115.01

LOT

Is there a need to introduce an acronym LOT just for one instance?

Replace LOT with List of Tables.

REVISED
This is already addressed in D1.1.

The resolution does not specify the actual changes made

There is no change made. The proposed change is already there in D1.1 as described in the resolution. Do you want me to use reject?

3

Rojan Chitrakar

151.01

LOF

Is there a need to introduce an acronym LOF just for one instance?

Replace LOF with List of Figures.

REVISED
This is already addressed in D1.1.

The resolution does not specify the actual changes made

There is no change made. The proposed change is already there in D1.1 as described in the resolution. Do you want me to use reject?





49

Youhan Kim

100.18

Contents

"field5380" should be "field     5380"

Change "field5380" to "field     5380"

REVISED
This is related to the reference page setting of framemaker. Editor to use the reference page format that can provide .... page number even when the title is too long.

Why is this not ACCEPTED?  What does the resolution mean?  What change is being proposed instead?

It is not accepted because this is a software issue about the reference page of table of content. If you check table content you will see that every clause with title too long that goes to the next line will have this issue. Once we fix the reference page, it will take care all instances and not just this instance.

220

Haorui Yang

757.33

9.3.1.8.6

Encoding of Block Ack Starting Sequence Control field and Block Ack Bitmap field are missing.

Add the below to the end of the paragraph:
The Block Ack Starting Sequence Control subfield is shown in Figure 9-49 (Block Ack Starting Sequence Control subfield format). The Starting Sequence Number subfield of the Block Ack Starting Sequence Control subfield contains the sequence number of the first MSDU or A-MSDU for whitch the Multi-STA BlockAck frame is sent. The Fragment Number subfield of the Block Ack Starting Sequence Control subfield is set as defined in Table 9-40 (Fragment Number subfield encoding for the Multi-STA BlockAck variant).

REVISED
Add at the end of paragraph at 752.33. "If the AID11 subfield of the AID TID Info subfield is not 2045, 2009, or 2047,(#M7) then the Per AID TID Info subfield has the format shown in Figure 9-66 (Per AID TID Info subfield format if the AID11 subfield is not 2045, 2009, or 2047(#M7)(#11be)). The Block Ack Starting Sequence Control subfield is shown in Figure 9-54 (Block Ack Starting Sequence Control subfield format). The Starting Sequence Number subfield of the Block Ack Starting Sequence Control subfield contains the sequence number of the first MSDU or A-MSDU for which this BlockAck frame is sent. The Fragment Number subfield of the Block Ack Starting Sequence Control subfield is set as defined in Table 9-44 (Fragment Number subfield encoding for the Multi-STA BlockAck variant)."

Is the second half of the proposed resolution the same as the proposed change?  What is the reason for the extra material?

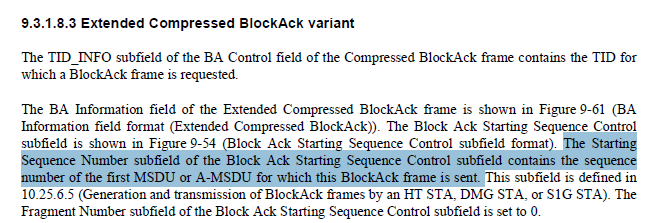

For the second half, if you look very carefully, the difference is “for whitch the Multi-STA BlockAck frame is sent.” Vs “for which this BlockAck frame is sent.” The second one is the style used in other clause. For example, see 9.3.1.8.3



226

Haorui Yang

231.04

3.1

"NOTE-" is missing.

Add "NOTE-"

REVISED
Add back "NOTE-" to all the descriptions below definitions in 3.1 if missing.

The resolution does not specify the actual changes made

I think it mentions we add “NOTE-” to all description below definitions?



256

Ryunosuke Sakamoto

661.13

8.3.5.15.2

There is a typo. "data" is mistakenly written as "date."

correct "date" to "data."

ACCEPTED

A full stop should not be added

OK. I will use revise.

258

Li-Hsiang Sun

1886.20

9.6.7.33

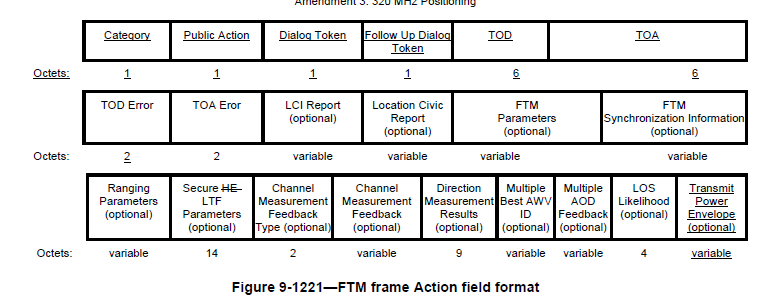

First several octets in Figure 9-1335 are missing

add first 16 octets back to the figure

REVISED
This is updated by 11bk-2025.

The resolution does not specify the actual changes made

It does not specify the change because it is already fixed in 11bk-2025 as described in the resolution, which me and Edward are rolled in and will appear in D1.2.







468

Mark RISON

2040.56

9.6.27.2

"is set to an unsigned value that represents the MCS difference" -- per 9.2.2 it's unsigned by default

Delete "is set to an unsigned value that"

REVISED
We delete the cited texts, but add a note.

The resolution does not specify the actual changes made

OK. I will say add a note “NOTE—The MCS Difference field is set to an unsigned value.” This the resolution similar to your another comment on unsigned integer.



475

Mark RISON

747.34

9.3.1.8.1

Reference to "a BlockAck" frame
should be
Reference to a "BlockAck frame".  Ditto 743.53

As it says in the comment

REVISED
change the instance at 747.34 as suggested by the commenter. At 743.53 change "Reference to a "a BlockAckReq" frame" to "Reference to a "BlockAckReq" frame"

The quoted text at 743.53 is incorrect: it's not "to a "a BlockAckReq" frame", it's "to "a BlockAckReq" frame"

OK. Will change this.

485

Mark RISON

361.63

4.5.4.2

"without association by establishing a PTKSA using authentication frames" precedence unclear and bad case

Change to "without association, by establishing a PTKSA using Authentication frames".  Also change "authentication" to "Authentication" at 3433.48

REVISED
We change "authentication frames" to "Authentication frames".  There's no grammatical or structural need for a comma before "by", as it's tightly connected to the verb "allows" (specifically, it modifies "protection" to describe how it's achieved).

Not clear which "authentication frames" has/have been changed to "Authentication frames".  Think comma makes the sentence clearer, too

OK. I will say change "authentication frames" in the cited texts. Disagree on the comma. If you want, I can pull this out for discussion.

510

Mark RISON

744.63

9.3.1.7.4

"as given by TID_INFO + 1, e.g., a 2 in the TID_INFO subfield means that three TID values are present in the Multi-TID BlockAckReq frame's BAR Information field" -- readers of the 802.11 spec can safely be assumed to be able to do this simple small integer sums without help

Delete from ", e.g." to the end of the sentence

REVISED
The example is revised to be a note. "NOTE—A 2 in the TID_INFO subfield means that three TID values are present in the Multi-TID BlockAckReq frame's BAR Information field."

Don't think such a NOTE has any value, given the readership

Obviously, the person who proposed this at the beginning think there is a value. I remembered this is added due to some comments, which is the reason why I try to keep it. If you want, I can pull this out for discussion.

583

Joseph Levy

270.13

3.2

The definition "restricted target wake time: [R-TWT] TWT with enhanced medium access protection and resource
reservation for delivery of latency sensitive traffic as described in 35.8 (Restricted TWT (R-TWT))." has formatting issues.

Replace the current definition with: "restricted target wake time (TWT): [R-TWT] TWT with enhanced medium access protection and resource reservation mechanisms for delivery of latency sensitive traffic.
Note: see 35.8 (Restricted TWT (R-TWT))."

REVISED
Add "(TWT)" after  "restricted target wake time". Replace " as described in 35.8 (Restricted TWT (R-TWT))." with " Note- See 35.8 (Restricted TWT (R-TWT)). "

How does this differ from the proposed change?  And Note should be NOTE.  But in any case I don't think a xref is justified, let alone a NOTE to give the xref

The difference is that the proposal is “Note:” rather than “Note-”. Agree to capitalize NOTE. I will change that. For the NOTE, I do not see why reference is not justified. I have seen cases using a NOTE or without using a NOTE for reference. I am fine either way.







Thanks,



Mark



P.S.: Incidentally, who is "we" in the proposed resolutions?



--

Mark RISON, Standards Architect, WLAN   English/Esperanto/Français

Samsung Cambridge Solution Centre       Tel: +44 1223  434600

1 Cambridge Square, Cambridge CB4 0AE   Fax: +44 1223  434601

ROYAUME UNI                             WWW: http://www.samsung.com/uk



From: Huang, Po-kai <po-kai.huang@xxxxxxxxx>
Sent: Saturday, 4 October 2025 00:41
To:
STDS-802-11-TGM@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGM] Proposed resolutions for 40 ED1 comments posted



--- This message came from the IEEE 802.11 Task Group M Technical Reflector ---

Dear all,





I've uploaded 25/1749r0 that contains proposed resolutions for 40 ED1 comments that are straightforward to resolve in my opinion.



https://mentor.ieee.org/802.11/dcn/25/11-25-1749-00-000m-revmf-lb289-ed1-ad-hoc-comments.xlsx


Following the practice of ED2 comments, I might not present the proposed resolution of any CID unless any of you would like to pull any CID out for further discussion.



Thanks in advance for the review.



Best,

Po-Kai
