Re: [802.3_10SPE] 10Mbps MII objective



Title: Default Disclaimer Daimler AG

Yes.  Stefan’s email brought you to exactly the same place I was.  See my response sent now 2 hours, 46 minutes ago, which is still in the black hole of the reflector latency!

-george



From: Peter Jones (petejone) [mailto:petejone@xxxxxxxxx]
Sent: Friday, August 26, 2016 11:36 AM
To: STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_10SPE] 10Mbps MII objective



As an observation (George  please correct any obvious oops’s), I think recent BASE-T standards have tended to define the logical interface (e.g. XGMII), and leave the real physical interface to the industry to figure out.



Take a look at this presentation from 802.3bz (2.5G/5G BASE-T) - http://www.ieee802.org/3/bz/public/may15/bains_3bz_01b_0515.pdf



I would ask the question about where the physical interface should be defined, and how common would the requirements be across different industries and use cases.



Regards

Peter



_______________________________________________

Peter Jones             Cisco Systems

Principal Engineer      560 McCarthy Blvd.

Campus Switching S/W    Milpitas, CA, 95035 USA

Wrk: +1 408 525 6952    Mob: +1 408 315 8024

Email:                  petejone at cisco.com

Twitter:                @petergjones

LinkedIn:               /in/petergjones

_______________________________________________



From: Stefan Buntz [mailto:stefan.buntz@xxxxxxxxxxx]
Sent: Friday, August 26, 2016 8:32 AM
To: STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Subject: [802.3_10SPE] 10Mbps MII objective



Hi all,





@Georg: You are right, occasionally I am an engineer and tend to describe all technical aspects to be sure no point is forgotten. So most of my proposal is maybe important for the task force, but not for now.

Only point I am missing in your proposal is the speed grad (10Mbps – or is this clear as we are working on a 10Mbps MDI) of the MII. So the objective would be (including that the whole interface for sure is an “optional” solution like Ahmed pointed out):



Define a optional 10Mbps MII (media independent interface) with reduced pin-count including an management interface.



That this is only for stand-alone PHYs  is clear to us. And that it shall work under industrial and automotive environmental conditions and that the reduced pin count

is intended to accommodate small package solutions of stand-alone PHYs (and as well simple µC as counter-part) and allow simple PCB layout is also straight forward.

Regarding the automotive and industrial environmental conditions: Yes, MII-interfaces work, however, there is a lot of work to do to make them work properly in automotive

environment (as Claude mentioned: the radiation emission of MII or GMII is really a nigthmare sometimes, differential SGMII seems more easy often). As well we have to

consider automotive temperature grade and stuff like that when we define limit levels and tolerances for the signaling (but this is semiconductor manufacturers task;-) to ensure

the interface we define is conform in the whole temperature range…



@Claude: I think for the beginning a discrete solution is interesting as well for sure (as we also have discrete Flexray PHYs…)





Regards,

Stefan

------------------------------------------

Stefan Buntz

Mercedes-Benz Cars Development, Daimler AG

Group Research & Advanced Engineering

Safeguarding Hard & Software

HPC: U059 – Dep.: RD/EEQ



Phone: +49 731 505-2089

Mobil: +49 176 30 90 51 44

Fax: +49 711 305 216 45 95

E-Mail: stefan.buntz@xxxxxxxxxxx



Address for visitors:

Buildung 10

Room 3.2.022

Wilhelm-Runge-Str. 11

D-89081 Ulm

Germany

------------------------------------------



Von: Claude R. Gauthier, Ph.D. [mailto:claude.gauthier@xxxxxxxxxxxxxxx]
Gesendet: Freitag, 26. August 2016 02:10
An: STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Betreff: Re: [802.3_10SPE] AW: [802.3_10SPE] AW: draft contributions for the 10Mbps Single Pair ad hoc Monday 8/22



Hi,

For a standalone discrete PHY, it would seem that some optimized, technically "cheap," package-friendly interface would be a key driver for overall cost/viability by reducing package/test. Beyond the obvious cost reasons, limiting the radiation caused by sharp edge rates (overkill for a 10Mb/s application anyways).

>From a Flexray replacement perspective, is a discrete solution part of the deal?

-Claude

August 25, 2016 at 1:58 PM

I think I see the source of your confusion.  While the implementation of a physical MII is optional, there is always a reference point defined for the interface between the MAC and PHY. Throughout IEEE Std 802.3, starting at 100M, that interface is a form of MII, and it is the logical definition point for a PHY, and  physically optional to implement.



In general, an interface we define internal to the port (that is, inside the box from the MDI) is optional, as one may choose to integrate all the rest of the functionality within a chip or other closed system (such as multiple chips with proprietary internal interfaces).  This happens all the time.



What is different in this project, and what I’m asking those in the group, is whether economic feasibility considerations are aided by us to defining (or adopting) a reduced pin-count interface as part of this PHY project?  Of course this is (at least nearly) irrelevant for integrated MAC/PHY chips; however, the issue did come up when discussing standalone PHYs with other participants.  Again, of course, physically implementing such an interface would be optional.



I hope this clears it up.



For those interested in how the standard reads on these interfaces elsewhere in 802.3, read on, otherwise you can skip it.

-george



First, the language in the standard isn’t

There are some places in 802.3 where the language is less than clear, and figures are labeled “MII is optional”, but, in fact, it is the physical implementation and exposure of MII that is optional.  (GMII is confused in the same way, in Clauses 34 & 35, the gigabit architecture clauses, GMII is NOT optional, but clause 40’s figure does have the “GMII is optional” statement – 36.1.5 makes this clear, referring to “an optional physical instantiation” as GMII, and clause 40 (in 40.1.5) refers similarly that the physical implementation is optional, but the functionality is not).



When looked at as a logical interface defined between 2 sublayers, the interface functionality can never be optional if they are to communicate. You need a basis for communication between sublayers, if only to be able to define the standard (try to read clause 40 independent of the GMII).  The language around the 10G interface (Clause 46, in 46.1) is a little more specific, where it says “Though the XGMII is an optional interface, it is used extensively in this standard as a basis for specification.”

If we specify an interface, in my view, it would be optional to implement, because, of course, the logical interface is already defined.



Any interface in 802.3 may or may not be physically exposed (and therefore may or may not be implemented as specified).  Generally, there are many physically implementable interfaces.  Again, looking at 10G, the physically implemented interface can be XAUI (defined by IEEE standard), XFI (an MSA), or even XSGMII (proprietary).    Similarly, gigabit PHYs are defined relative to GMII, but most phys either integrate the interface functions internally, or use a proprietary interface like SGMII which maps the GMII functionality on an electrical interface.



I hope this has cleared it up, as much as it can – reviewing the language in multiple clauses of the 802.3-2015 standard, the nature of the MII (physical or logical, optional or required) isn’t always entirely consistent or clear.   However, for us, the issue here is whether economic feasibility considerations are aided by us to defining (or adopting) a reduced pin-count interface as part of this PHY project.



-george







From: Ahmad Chini [mailto:ahmad.chini@xxxxxxxxxxxx]
Sent: Thursday, August 25, 2016 1:25 PM
To: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>; STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_10SPE] AW: [802.3_10SPE] AW: draft contributions for the 10Mbps Single Pair ad hoc Monday 8/22



MII interface is OPTIONAL.



Are we looking for a mandatory interface specification for 10SPE ?



Thanks

Ahmad



From: George Zimmerman [mailto:george@xxxxxxxxxxxxxxxxxxxx]
Sent: Thursday, August 25, 2016 10:13 AM
To: STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_10SPE] AW: [802.3_10SPE] AW: draft contributions for the 10Mbps Single Pair ad hoc Monday 8/22



Ahmad – Thanks for jumping in, but I’m at a loss to see where you are going, other than to point out there are many proprietary MAC/PHY interfaces.

Perhaps you can help clarify, and I’ll provide some background below.



First, this is not a gigabit interface, so it is not GMII.  Even so, GMII isn’t in Clause 40, which is the 1000BASE-T PCS/PMA.  Physical implementation of the upstream interfaces are optional for all the PMAs (because the MAC/PHY may be integrated as a chip, or may use a proprietary interface).



In order to meet our economic feasibility objective, there has been substantial discussion that reducing the cost of the device is important, and further, that pin count related costs, such as package and test are a substantial issue.  Given that we have only 2 signalling pins for the MDI side of the interface, using 18 for the MAC/PHY interface seems extreme.  I haven’t heard anyone say we want to preclude standalone PHY chips from meeting the economic feasibility criterion.



The MAC/PHY interface specified for 100Mbps operation is MII.  The MII as defined in Clause 22 has some 18 individual signals.  There are various proprietary reduced pin count MIIs – the question is whether we need to define one to meet the CSDs for this project.



The options I see are below: (I’m not recommending any of these, but trying to drive the group to making a choice):

-          Leave this to the implementer (has been done in the past, but, in this case, a solution is fairly important with regards to the CSDs in my opinion – and, in this case, we’d need some justification for that, maybe a presentation on the variety of available MAC/PHY interfaces?

-          Specify a reduced pin-count MII (could be based on an existing one…), this was the objective proposed – maybe included in the PHY technical/economic feasibility as a factor for the pin count of the MAC/PHY interface

-          Use the AUI (Clause 7), which is an option at 10Mbps, for the interface, which has 3 or 4 differential signals, power and ground (6 to 8 signalling pins, V+, V- and Ground) but is very long in the tooth, uses 12V power and is designed for 78 ohm cable drivers.



Its just that it appears that from an economic feasibility point of view, at least for separate PHY chips, the MAC/PHY interface could be a significant issue.

-george



From: Ahmad Chini [mailto:ahmad.chini@xxxxxxxxxxxx]
Sent: Thursday, August 25, 2016 9:42 AM
To: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>; STDS-802-3-10SPE@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_10SPE] AW: [802.3_10SPE] AW: draft contributions for the 10Mbps Single Pair ad hoc Monday 8/22

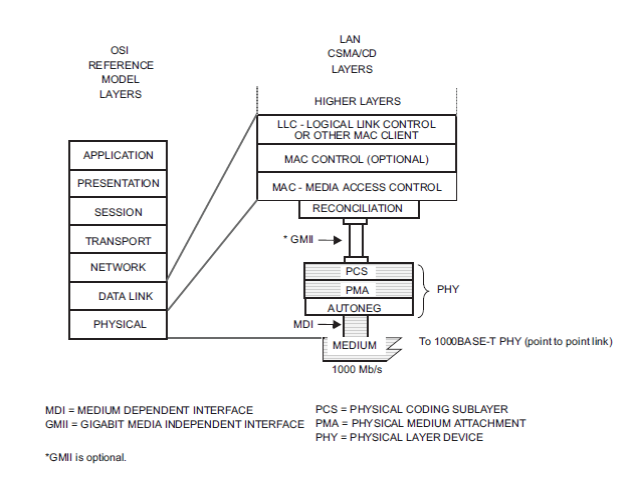

Please see below diagram showing GMII is optional for 1000BASE-T. Many products in the market use reduced pin count interfaces (e.g. RGMII, SGMII, etc.) not specified in Clause 40. Different products are made with different interfaces depending on use cases.
