Dear TGbe members,
I initiate this email thread to discuss the contribution 11/22-1250r1, which was presented in the MAC ad-hoc meeting this Monday.
I received several sets of comments during the call, and I’d like to resolve the comments here.
<Comment 1> Please clarify the relationship between the ML SM PS mode and the link level dynamic SM PS mode.
<Comment 2> Please also clarify that the non-AP MLD can only use one mode at a time among the ML SM PS mode, the EMLSR mode and the EMLMR mode.
I added a new paragraph to the new revision
11/22-1250r2 as below:
A non-AP MLD shall not operate in the MLSM power save mode if any of its affiliated STA is operating in the static SM power save mode or the dynamic SM power
save mode. A non-AP MLD shall not operate in the MLSM power save mode if it is operating in the EMLSR mode or the EMLMR mode.
<Comment 3> non-AP MLD can use other method to do the power save, e.g., cross-link power state indication
I did some system-level simulation to demonstrate the efficiency of the ML SM power save mode as illustrated below.
Simulation settings:
Traffic: DL ; AP MLD number: 1-2 ; non-AP MLD number: 1-4; Link number: 2 ; NSS per link: 1 ; Link 1 (primary) is 20MHz (assuming 2.4GHz band) ; Link 2 is 80MHz (assuming 5GHz band) ; Packet size: 1500 bytes
Simulation scheme 1 (ML AM PS mode):
Non-AP behavior: monitor on link 1 only. After receiving an initial frame (e.g., RTS), turn on link 2.
AP behavior: contend the channel on both link 1 and link 2, need to transmit an RTS on link 1 first, then transmit on link 2.
Simulation scheme 2 (independent access):
Assume two links are STR, each link can perform transmission independently.
Simulation scheme 3 (cross-link power state indication):
AP MLD only contends on link 1 and transmits to the non-AP MLD, the non-AP MLD will indicate to the AP MLD whether it turns on the other link (probability is p). In the figures below, the line marked as “COMP 1.0” corresponds to this scheme
3 with p=1.0, the line marked as “COMP 0.3” corresponds to this scheme 3, with p=0.3, and the line marked as “COMP 0.6” corresponds to this scheme 3, with p=0.6.
Simulation output:

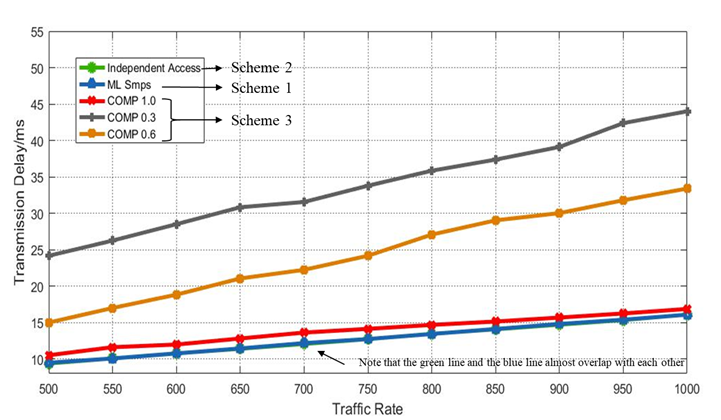

Metric 1: transmission delay

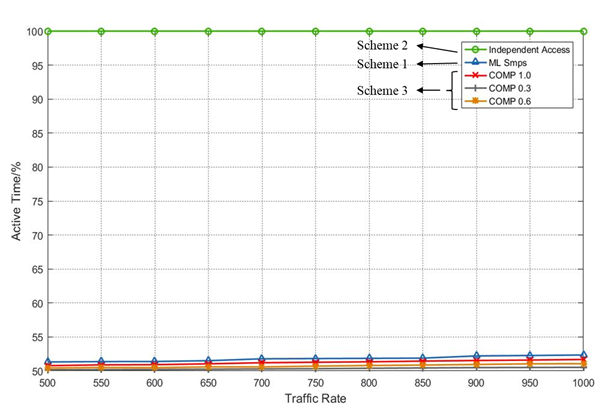

Metric 2: the amount of time that the radio is active (normalized to scheme 2. Note that in scheme 2, two links are always active.)
Analysis:
Scheme 2 (independent access) has the lowest transmission delay, but the power consumption is highest.
Scheme 3 (cross-link power state indication) consumes similar power as the ML SM PS mode, but the transmission delay is higher.
Scheme 1 (ML SM PS mode) balances the transmission delay and power consumption. It reduces the power consumption to a relatively low level, and does not increase the transmission delay.
<Comment 4> the scheme does not save power. Comparatively, other modes (e.g., EMLSR mode) saves power.
As shown in the simulation result above, this scheme really saves power. Moreover, it balances the power consumption with the transmission delay.
The ML SM PS mode does not prevent the non-AP MLD from using the other modes, the non-AP MLD can choose to use any of these modes for its own need.
Each mode has its pros and cons, e.g., the EMLSR mode works well for single radio non-AP MLD, and the ML SM PS mode only requires one RF chain to be active for most of the time, which is good for low power consumption.
