Re: [802.3_SPEP2P] [802.3de] Half-duplex issues in MACMerge



David –

Reading the below, it seems to me that a collision that occurs near the start of an express packet would be interpreted as a late collision by the pMAC (as you say, more than 512 bits have passed), but is not necessarily a late collision for the eMAC, since it would be within the first 512 bit times of the eMAC.  Further, I think that for 10BASE-T1S networks (which have no repeaters and short propagation delay) the modification to clause 99 to extend carrier for half duplex systems eliminates this collision possibility.

Or am I missing something?

-george



From: stds-802-3-spep2p@xxxxxxxxxxxxxxxxx <stds-802-3-spep2p@xxxxxxxxxxxxxxxxx> On Behalf Of Law, David
Sent: Tuesday, February 8, 2022 9:18 AM
To: IEEE P802.3de Task Force <stds-802-3-spep2p@xxxxxxxx>
Subject: RE: [802.3de] Half-duplex issues in MACMerge



Hi Lokesh,



Thank you very much for this excellent contribution.



I'd like to start with a minor comment on slide 6 'Collision Scenarios in MACMERGE 1' and slide 10 'Summary of Collision Issues'. Since, based on subclause 99.4.5 and 99.4.6 of the current IEEE P802.3de draft, the PLS_SIGNAL.indication from the RS is forwarded to both the eMAC and the pMAC, I believe that a late collision can occur either when the pMAC is transmitting a continuation fragment, or when the eMAC is transmitting an express packet that has pre-empted a pMAC packet.



I believe that any collision that occurs after the transmission of more than 512 bits by a MAC is classified as a late collision. See WatchForCollision procedure in subclause 4.2.8 where lateCollisionError is set true if (currentTransmitBit > (slotTime - headerSize). The headerSize is subtracted from slotTime as currentTransmitBit only starts counting after the header is sent, see BitTransmitter process 4.2.8.



I also believe that Figure 99-5 'Transmit Processing state diagram' will always ensure that the pMAC has transmitted a minimum of 512 bits before it can be pre-empted by the eMAC. The transition from the PREEMPTABLE_TX state to the TX_MCRC state is conditioned on preempt being true. The varible preempt is defined as true when pAllow * (eTx + hold) * preemptableFragSize * MIN_REMAIN, and preemptableFragSize is defined as true when fragSize >= (minFrag x (1 + addFragSize) – 4) where fragSize is a count of the number of octets of mData transmitted in the current preemptable mPacket, and where minFrag is 64 bytes.

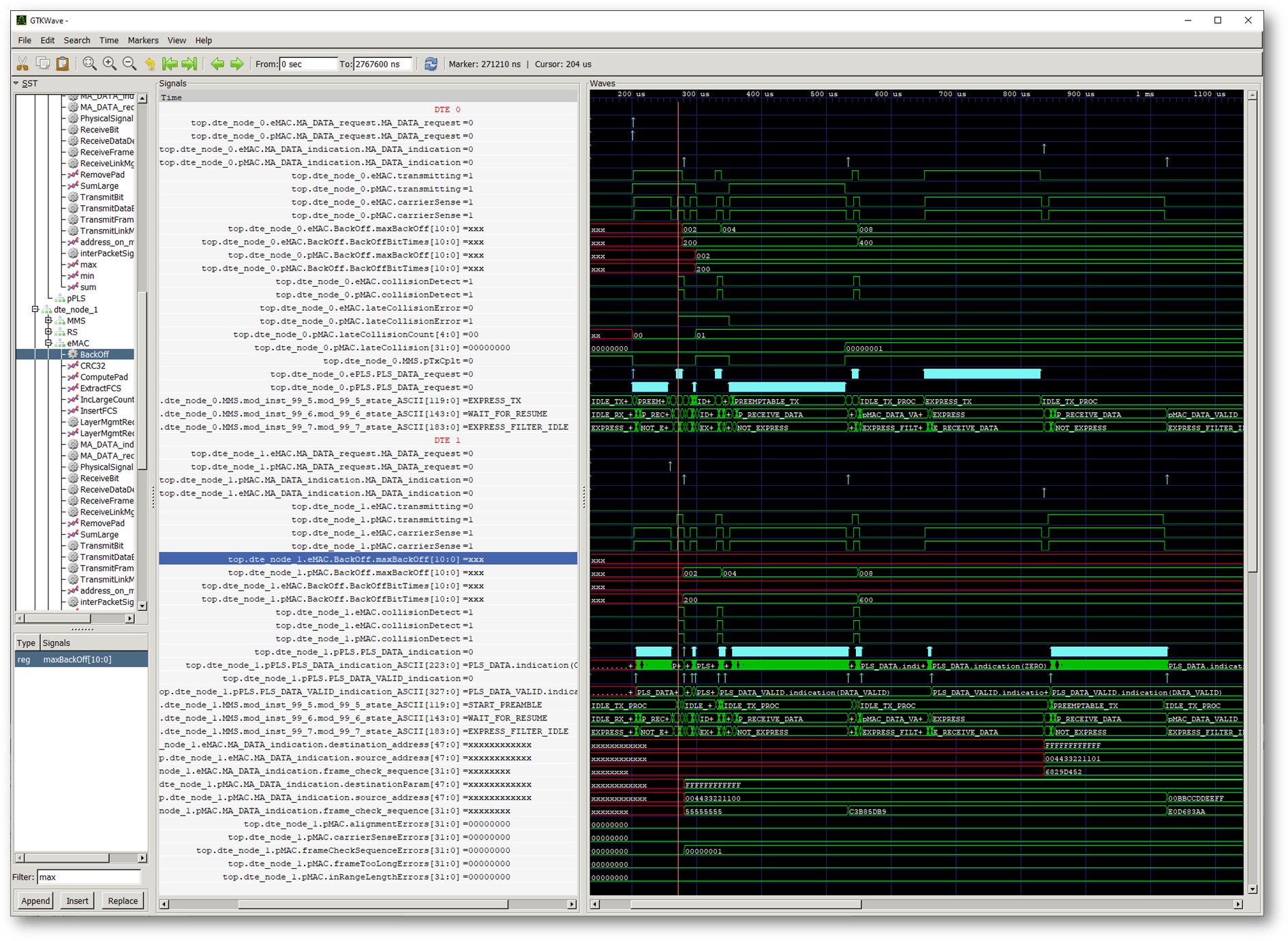

As a result, should a pre-emptiable packet be preempted by an express packet, since the express packet will not be sent until after a minimum of 64-byte fragment of the pre-emptiable packet has been sent, a collision that occurs at any point within the express packet that will be forwarded to both the eMAC and pMAC will be considered a late collision by the pMAC. I've captured an example of this in the trace below from my Verilog model of the system you illustrate on slide 3 of your contribution.



The fix is already listed on slide 6 of your contribution, the PLS_SIGNAL.indication from the RS should only be forwarded to the transmitting MAC. So, as I said, a minor point, but for completeness I suggest that slide 6 and slide 10 list that a late collision can occur when the eMAC is transmitting an express packet that has pre-empted a pMAC packet, based on the current draft forwarding collision events to both MACs.



Best regards,

  David



-----



-----
