I agree that simplifying the _expression_ so that it is not one large equation is preferred.
There is a proposal to add a per-port renormalization function to COM. This would make that section much more readable. In addition to using it in get_TDR.m, a renormalization function could also be applied
to this block of s21_pkg.m where the Tx and Rx die termination are added:
if include_die
s21p= H_t.*s21.*(1-gamma_tx).*(1+gamma_rx)./(1.- s11.*gamma_tx - s22.*gamma_rx -s21.*s12.*gamma_tx.*gamma_rx +s11.*s22.*gamma_tx.*gamma_rx);
else
s21p=s21; % if no die we do not want a VTF
end
Thanks,
Adam
|
From: Adee Ran (aran) <0000147b29386f6c-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Sunday, July 20, 2025 5:49 AM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_COM] Correction: Question about equation in function get_TDR
Rich, thank you for the explanation.
I think it would be preferable to keep the more compact terms in the COM code, rather than expanding everything to a very long _expression_. If I understand correctly,
this could be done with a few additional lines of code using temporary variable assignments.
I recognize that symbolic math manipulation requires a separate license, but anonymous functions do not.
Please consider if that can be done.
</Adee>
From: Norman Swenson <norm.swenson@xxxxxxxx>
Sent: Saturday, July 19, 2025 9:17 PM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_COM] Correction: Question about equation in function get_TDR
Thanks, Rich.
In my last bullet of
https://www.ieee802.org/3/dj/public/25_07/swenson_3dj_01_2507.pdf , I said “This result [meaning that the reflection coefficient does not depend on the Z0 chosen as the reference impedance] holds for an arbitrary two-port network.” I computed the reflection
coefficient for an arbitrary S-matrix, Z_source, and Z_load using Mathematica. I did not present the equation because it was so messy. I think you did the same thing using the matlab symbolic editor. When I get time, I will compare the two results to make
sure we got the same answer.
Regards,
Norm
From: Richard Mellitz <Richard.Mellitz@xxxxxxxxxx>
Sent: Saturday, July 19, 2025 8:27 AM
To: norm.swenson@xxxxxxxx;
STDS-802-3-COM@xxxxxxxxxxxxxxxxx
Subject: RE: [802.3_COM] Correction: Question about equation in function get_TDR
The function was created with the matlab symbolic editor. Not sure how much will show in email, but Hansel has is right.
S = sym('s%d%d',[2
2],'positive')
I=eye(2)
Z0in = sym('Z0in%d',[1
2],'positive')
Z0out = sym('Z0out%d',[1
2],'positive')
RHO =@(zin,zout) (zout-zin)./(zout+zin)
R=RHO(Z0in,Z0out).*I
amp =@(zin,zout) sqrt(zout./zin).*(1./(zout+zin))
A=amp(Z0in,Z0out).*I
SOUT=simplifyFraction( A^-1* (S-R) *(I-R*S)^-1 *A);
%Looking for TDR input port oof a s2p
syms
Zin Zout
SOUT=subs(SOUT,Z0in(1),Zin);
SOUT=subs(SOUT,Z0in(2),Zin);
SOUT=subs(SOUT,Z0out(1),Zout);
SOUT=subs(SOUT,Z0out(2),Zout)
RL=simplify(SOUT(1,1))
collect(RL,[Zin,Zout])
TDR_RL=matlabFunction(RL)
S =
I = 2×2
1 0
0 1
Z0in =
Z0out =
RHO = function_handle with value:
@(zin,zout)(zout-zin)./(zout+zin)
R =
amp = function_handle with value:
@(zin,zout)sqrt(zout./zin).*(1./(zout+zin))
A =
SOUT =
RL =
ans =
TDR_RL = function_handle with value:
@(Zin,Zout,s11,s12,s21,s22)(Zin.^2.*s11+Zin.^2.*s22+Zout.^2.*s11+Zout.^2.*s22+Zin.^2-Zout.^2+Zin.*Zout.*s11.*2.0-Zin.*Zout.*s22.*2.0+Zin.^2.*s11.*s22-Zin.^2.*s12.*s21-Zout.^2.*s11.*s22+Zout.^2.*s12.*s21)./(Zin.*Zout.*2.0+Zin.^2.*s11+Zin.^2.*s22-Zout.^2.*s11-Zout.^2.*s22+Zin.^2+Zout.^2+Zin.^2.*s11.*s22-Zin.^2.*s12.*s21+Zout.^2.*s11.*s22-Zout.^2.*s12.*s21-Zin.*Zout.*s11.*s22.*2.0+Zin.*Zout.*s12.*s21.*2.0)
|
From: Norman Swenson <norm.swenson@xxxxxxxx>
Sent: Saturday, July 19, 2025 6:09 AM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_COM] Correction: Question about equation in function get_TDR
|
Caution: This email originated from outside the organization. Do not click links or open attachments unless you recognize the sender and know the content is safe.
|
Hansel
Thank you very much. I will study the presentation. I do believe it is what I thought it was based on your note below.
Regards,
Norm
From: Hansel DSilva <Hansel.D'Silva@xxxxxxxxxxxxxxxx>
Sent: Friday, July 18, 2025 10:53 PM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx;
norm.swenson@xxxxxxxx
Subject: Re: [802.3_COM] Correction: Question about equation in function get_TDR
Hi Norman,
The function on line 63 of TDR_RL is the renormalized return loss (Sdd11' or Sdd22') where one is changing the differential reference impedance from sdd.Impedance to (2*ZT). Does this help answer the quesiton?
The function TDR_RL on line 63 is called by the following on line 71.
RL(i)=TDR_RL(sdd.Impedance,2*ZT,sdd.Parameters(param.RL_sel,param.RL_sel,i) ,sdd.Parameters( 1,2 ,i), sdd.Parameters( 2,1 ,i),sdd.Parameters( other_port,other_port ,i) );
Attached is a presentation that derives the formula on line 63, starting from the renormalization of a 2×2 S-matrix. It leads to an _expression_ for the renormalized return loss in terms of the original (unrenormalized)
S-parameters and the input/output reference impedances.
Regards,
Hansel D'Silva
From: Norman Swenson <norm.swenson@xxxxxxxx>
Sent: Saturday, July 19, 2025 11:10 AM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx <STDS-802-3-COM@xxxxxxxxxxxxxxxxx>
Subject: Re: [802.3_COM] Correction: Question about equation in function get_TDR
CAUTION: EXTERNAL EMAIL
Correction: The name of the function (and corresponding .m file) is get_TDR.
From: norm.swenson@xxxxxxxx <norm.swenson@xxxxxxxx>
Sent: Friday, July 18, 2025 10:30 PM
To: STDS-802-3-COM@xxxxxxxxxxxxxxxxx
Subject: Question about equation in function TDR_results
Hello all
I am trying to reverse engineer the current version of COM in the main
branch. Lines 62 and 63 of the function get_TDR define a pure function:
% re-normalize reference of s-parameterss: this seems correct for a s4p
input file [sic]
TDR_RL
=@(Zin,Zout,s11,s12,s21,s22)(Zin.^2.*s11+Zin.^2.*s22+Zout.^2.*s11+Zout.^2.*s
22+Zin.^2-Zout.^2
<mailto:=@(Zin,Zout,s11,s12,s21,s22)(Zin.%5e2.*s11+Zin.%5e2.*s22+Zout.%5e2.*
s11+Zout.%5e2.*s22+Zin.%5e2-Zout.%5e2> +
Zin.*Zout.*s11.*2.0-Zin.*Zout.*s22.*2.0+Zin.^2.*s11.*s22-Zin.^2.*s12.*s21-Zo
ut.^2.*s11.*s22+Zout.^2.*s12.*s21)./(Zin.*Zout.*2.0+Zin.^2.*s11+Zin.^2.*s22-
Zout.^2.*s11-Zout.^2.*s22+Zin.^2+Zout.^2+Zin.^2.*s11.*s22-Zin.^2.*s12.*s21+Z
out.^2.*s11.*s22-Zout.^2.*s12.*s21-Zin.*Zout.*s11.*s22.*2.0+Zin.*Zout.*s12.*
s21.*2.0);
In typeset form, TDR_RL is given by :

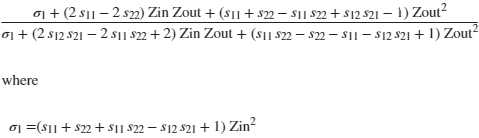

Or, expressing the numerator and denominator as polynomials in Zin and Zout,
TDR_RL is:
I am wondering what this is. Is this an _expression_ of the return loss when
Zin and Zout are the source and load impedances, respectively, when they
differ from the reference impedance Z0 used to calculate the s-parameters?
(If so, this would be along the lines of the presentation I made last Monday
to the interim working group meeting, but I would like to be sure.)
Thanks for any guidance anyone can provide.
Regards,
Norm
